Jenis Motherboard Intel untuk Dukung Performa PC, Ketahui Spesifikasinya

Motherboard atau mainboard adalah papan utama berupa pcb yang memiliki chip bios (program penggerak), jalur-jalur dan konektor sebagai penghubung akses masing-masing perangkat. Motherboard merupakan komponen utama dari sebuah PC, karena pada Motherboard-lah semua komponen PC anda akan disatukan. Bentuk motherboard seperti sebuah papan sirkuit elektronik.

Motherboard merupakan tempat lalu lintas data. Motherboard menghubungkan semua peralatan komputer dan membuatnya bekerja sama sehingga komputer berjalan dengan lancar.

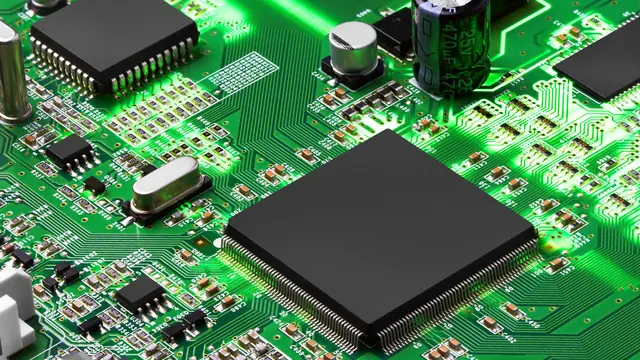

Basis motherboard terdiri dari selembar bahan non-konduktif yang sangat kuat, biasanya semacam plastik kaku. Lapisan tipis tembaga atau aluminium foil, yang disebut jejak, dicetak pada lembaran ini. Jejak ini sangat sempit dan membentuk sirkuit di antara berbagai komponen. Selain sirkuit, motherboard berisi sejumlah soket dan slot untuk menghubungkan komponen lain.

LGA 2011

1. Military Class III : Top Quality & Stability

2. PCI Express Gen 3 : World's 1st PCI Express Gen 3 Mainboard Brand

3. Click BIOS II : World's 1st Unified UEFI & Software Graphical Interface

4. OC Genie II : Overclock in 1 Second

5. Supports USB 3.0 & SATA 6Gb/s.

LGA 1156

1. Supports Intel Socket 1156 Processors

2. Intel P55 Express Chipset

3. Supports 2-Way SLI plus PhysX and 3-Way SLI plus PhysX

4. 4 DIMM Dual Channel DDR3 2600MHz+ up to 16GB

5. 6 PCI Express Graphics Expansion slots

6. 13 USB 2.0 ports (seven rear panel, six onboard)

7. 8 SATA II Ports supporting 300MB/s (2 E-SATA)

8. 2 1394 Ports (Firewire, one rear panel, one onboard)

9. 2 Gigabit Ethernet Ports (10/100/1000)

10. 8 Channel Audio w/SPDIF and COAX

LGA 1150

1. Supports 4th and 5th Gen Intel Core / Pentium / Celeron processors for LGA 1150 socket

2. Supports DDR3-3300(OC) Memory

3. M.2 + USB 3.0 + SATA 6Gb/s

4. 4-way Multi-GPU: 4-way NVIDIA SLI & AMD CrossFire Support

5. 16 Phase DigitALL Power Design

6. OC Certified: Military Class Burn-in Test Passed

7. Enhanced Thermal Design & Water Cooling Heatsink

8. OC Engine: For More Flexible BCLK Adjustments

9. V-Check Points 2: 3 multi-meters at the same time

10. Delid Die Guard: Way to Break World Record

11. VGA Cease Fire: Easy to Disable the VGA Card via Physical Switch

12. Guard-Pro: Improved Protection and Power Efficiency

13. Military Class 4: Top Quality & Stability

14. OC Essentials: The Most Convenient Tools while Breaking the Record

15. OC Genie 4: Overclock in 1 Second

16. Click BIOS 4: Easily Fine-tune Your System

17. Command Center: Control & Customize Your PC Settings

18. Wi-Fi 802.11 ac, Bluetooth 4.0, Intel Wireless Display

LGA 1366

1. Supports Intel Core i7 1366 Processors

2. Intel X58/ICH10R Chipset

3. 6 DIMM Triple-Channel DDR3 1600MHz+ (up to 24GB)

4. Supports 2-way, 3-way, 3-way SLI plus PhysX and CrossFireX

5. 2 SATA III 6.0 Gb/s Ports, 6 SATA II 3.0 Gb/s Ports

6. 2 1394 Ports (firewire one I/O, one onboard)

7. 2 Gigabit Ethernet Ports (10/100/1000)

8. 8 Channel High Definition Audio

9. 2 USB 3.0/2.0 Ports, 12 USB 2.0 Ports (8 I/O, 4 Internal)

LGA 1155

1. LGA 1155 socket for Intel 3rd/2nd Generation Core i7/i5/i3/Pentium/Celeron Processors

2. Intel Z77 Express Chipset

3. SupremeFX IV - AMPed For Perfect Audio

4. GameFirst II/Intel GB LAN - Put Your Frags First

5. mPCIe Combo + dual-band Wi-Fi/Bluetooth 4.0

6. Fusion Thermo - World's first hybrid air and water cooling thermal design

7. Windows 8 Ready - Assured Compatibility

Atom

1. Built-in Intel ATOM Dual-Core D525 processor

2. Support 2 x DDR3 memory, 8GB Max

3. Integrated Intel Graphics Media Accelerator 3150

4. Onboard Realtek PCI-E Gigabit Ethernet

5. Onboard Realtek 6CH High-Definition Audio

6. SATA 3.0GB/s ports ready

7. Printer port, COM port ready

8. Micro-ATX form factor
